Product Details:
Payment & Shipping Terms:
|
| Product Name: | Portable Digital Immersion Pyrometer For Molten Steel Temperature Measurement | Application: | Molten Steel Temperature Measurement |
|---|---|---|---|
| Type: | S,B,R | Model: | WK-100 |
| Theory: | Temperature Sensor | Usage: | Industrial |

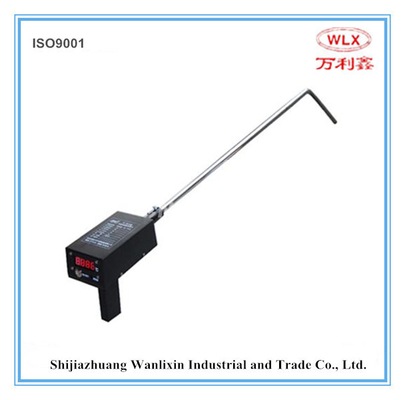

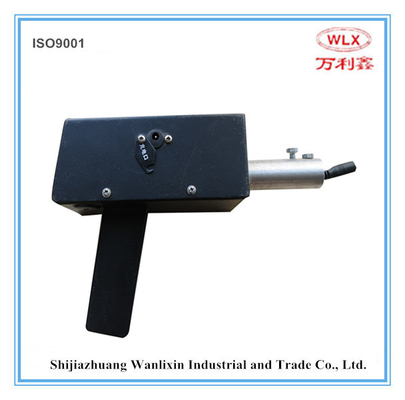

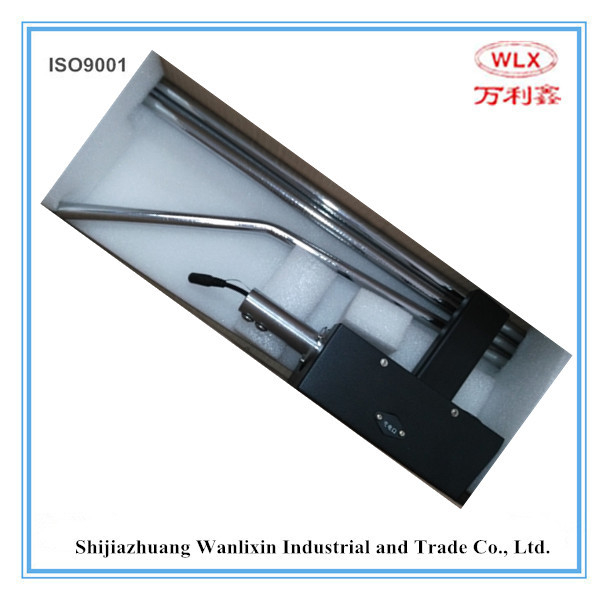

Portable Digital Immersion Pyrometer For Molten Steel Temperature Measurement
ⅠApplication
LC-600-type thermodetector is a high precision instrument that developed for rapid temperature measuring in smelting, casting and other industries.
With a high-performance single-chip microcomputer as the core, the instrument applies a high-precision measurement sensor and a variety of intelligent processing technologies. Therefore, our instruments can ensure customers steady operation for a long term and high anti-jamming capability.
Accurate and rapid temperature measurement can be conducted in a variety of melting occasions by connecting it with matched thermocouples.
LC-600-type thermodetector is a high precision instrument that developed for rapid temperature measuring in smelting, casting and other industries.
With a high-performance single-chip microcomputer as the core, the instrument applies a high-precision measurement sensor and a variety of intelligent processing technologies. Therefore, our instruments can ensure customers steady operation for a long term and high anti-jamming capability.
Accurate and rapid temperature measurement can be conducted in a variety of melting occasions by connecting it with matched thermocouples.
LC-600-type thermodetector is a high precision instrument that developed for rapid temperature measuring in smelting, casting and other industries.
With a high-performance single-chip microcomputer as the core, the instrument applies a high-precision measurement sensor and a variety of intelligent processing technologies. Therefore, our instruments can ensure customers steady operation for a long term and high anti-jamming capability.
Accurate and rapid temperature measurement can be conducted in a variety of melting occasions by connecting it with matched thermocouples.
|
Thermocouple |
Type |
measurement range(℃) |
Applicable Occasion |
|
Single Pt-Rh |
KS－602 |
0～1750 |
Liquid steel, iron, copper |
|
Single Pt-Rh |
KR－602 |
0～1750 |
Liquid steel, iron, copper |
|
Dual Pt-Rh |
KB－602 |
500～1800 |
high-temperature liquid steel |
|
W-Re |
KW－602 |
0～2000 |
Liquid steel, iron |
|
Ni Cr - Ni Si |
K |
0～1000 |
Liquid aluminum, zinc |
| Thermocouple | Type | measurement range(℃) | Applicable Occasion |
| Single Pt-Rh | KS－602 | 0～1750 | Liquid steel, iron, copper |
| Single Pt-Rh | KR－602 | 0～1750 | Liquid steel, iron, copper |
| Dual Pt-Rh | KB－602 | 500～1800 | high-temperature liquid steel |
| W-Re | KW－602 | 0～2000 | Liquid steel, iron |
| Ni Cr - Ni Si | K | 0～1000 | Liquid aluminum, zinc |
Ⅱ Features

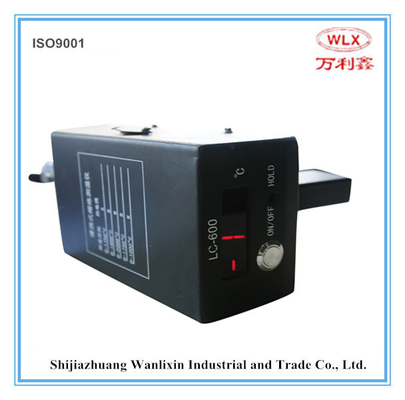

LC-600 thermodetector is integrated with thermocouple lance. Due to the harsh working environment and high temperature, the thermodetector is shock-proof and employs hi-lite LED and full metal jacket. Thus the LC-600 thermodetector is durable. Specific functions are as following:
1, Temperature automatic saving function;
2, Prompt function: light and buzzing simultaneously
3, Alarm function for thermocouple breakdown, outrange, under-voltage, etc.
4, Use Nickel-Hydrogen charging battery, can test more than 1000 times with one charge;
5, deenergize automatically after power on over two-minute without signal input
This instrument can be matched with five kinds of thermocouple.
Latest anti-jamming measures are applied. Temperature measurement can be conducted in the intermediate frequency furnace with power on.
Ⅲ Technical Performance Indicators
|
Graduation |
Measurement Range (℃) |
Accuracy |
|
S |
0～1750 |
≤±0.2％±1℃ |
|
R |
0～1750 |
|
|
WRe3/25 |
0～2000 |
|
|
B |
500～1800 |
|
|
K |
0～1000 |
| Graduation | Measurement Range (℃) | Accuracy |
| S | 0～1750 | ≤±0.2％±1℃ |
| R | 0～1750 | |
| WRe3/25 | 0～2000 | |
| B | 500～1800 | |
| K | 0～1000 |
2, Resolution Ratio(℃): 1
3, Respond Time(S):1
4, Power Supply: rechargeable batteries DC6V±10％
