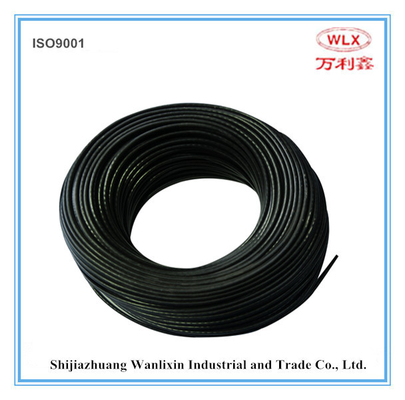

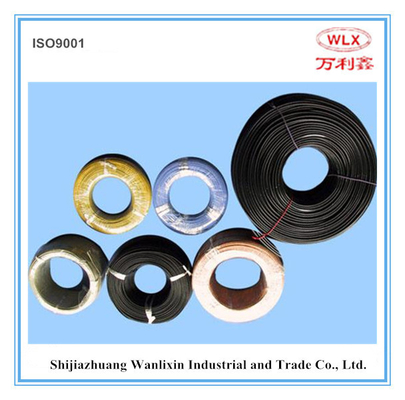

Made in China S/B/R Type Compensation Cable (Extension Wires) used for Oxygen Measurement with Competitive Price

Made in China compensation cable (external cable) used for oxygen measurement with competitive price

Within certain range of temperature, a pair of insulating wires used in the applicable thermocouple which has the same feature is called extension wire. When correctly connected with the applicable thermocouple, it will extend the reference end of thermocouple to a place away from heat or with constant temperature.

Advantages:

1, improve the mechanical and physical properties of the measuring lines of thermocouple.

2, reduce the cost of measuring lines

According to the extension wire standard (GB / 4989-94), models of extension wires are divided into four types:

SC, WC, RC, BC (The initial letter of each type correspond with their graduations. The letter “C” refers to the compensating extension wire.

℃ ±4℃

I Purpose and Working Principle of Disposable Thermocouple:

Used for measuring the temperature of molten steel and high-temperature molten metal, disposable thermocouple is disposable. Based on the thermoelectric effect of metals, it works according to the temperature difference between its two sides.

Ⅱ Product Specifications and Performance Comparisons:

Ⅲ Structure

Disposable thermocouple is mainly composed of temperature measuring probe and a big paper tube. Positive wire and negative wire of the temperature measuring probe are welded to a compensating lead wire embedded in a support bracket covered by a small paper tube. The thermo wires are supported and protected by quartz. The temperature measuring probe is covered by a cap to protect from dregs. All the components are put into a thermocouple tip and are bonded by fire-resistant filler into a whole. Therefore, the fast thermocouple is for one-time use.

Ⅳ Usage

1, To select the appropriate length of protective paper tube and temperature measuring gun according to the object and scope of the measurement

2, Attach the disposable thermocouple to the temperature measuring gun, make the pointer of the secondary instrument (or digital display) back to zero. Begin to measure.

3, It is recommended to insert the disposable thermocouple in to the molten steel at the depth of 300-400mm. Do not touch the furnace wall or scum. Bring up the temperature measuring gun immediately after the secondary instrument get results. The soak time of disposable thermocouple in molten steel should less than 5 seconds, otherwise the gun may be burned out.

4, Change the used thermocouple into a new one, and pause for a few minutes to get ready for the next measurement.

Ⅴ Transport and Storage

Be careful when assembling and removing the parts. Keep dry in the transportational process. The products should be put into cases and stored at warehouses where the relative humidity is less than 80%. Keep the air flowing. The air should not contain harmful gases which may corrode the products.
