Product Details:
Payment & Shipping Terms:
|
| Product Name: | Carbon Equivalent Meter Cup (Thermal Analysis Cup) For Casting Industry Analysis | Temperature Range: | 1250℃～1370℃ |
|---|---|---|---|
| Carbon Equivalent: | 3.2%～4.8%±0.05% | Carbon Content: | 2.8%～4.2%±0.05% |
| Silicon Content: | 0.9%～3.0%±0.1% | Type: | Round And Square Type |
| Color: | Browinish Yellow |
The carbon cups are used matching with the carbon and sulphur analyzer to quickly analyze carbon content, silicon content and carbon equivalent in molten iron, which can save smelting time of molten iron, greatly reduce production cycle of white and grey cast iron and therefore increase production efficiency.
Principle of measurement:
Collection of temperature curves is conducted by microprocessor. Contents of carbon and silicon, and quality of molten iron can be calculated by crystallization process of molten iron.
Temperature range: 1250℃～1370℃
Measuring range:
CEL: 3.2%～4.8%±0.05%
C%: 2.8%～4.2%±0.05%
Si%: 0.9%～3.0%±0.1%
Graduation No. of supporting thermocouple wires: K type

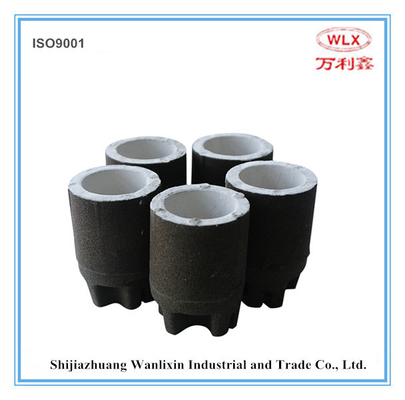

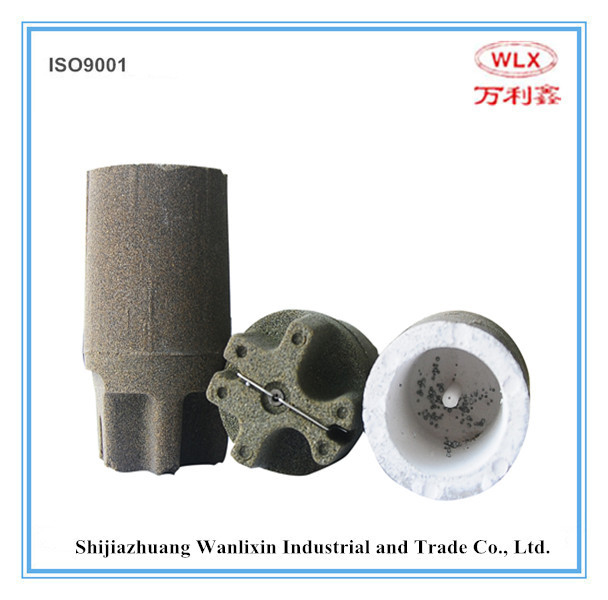

Shape of carbon cup: round and square type
Measurement function: thermal analysis towards cast iron
Measuring time: 240 seconds at most
Indication in working process: the carbon cup is connected with three signal indicators on the panel of “Ready”, “Measurement” and “Finish” through potential free reed relay.
|

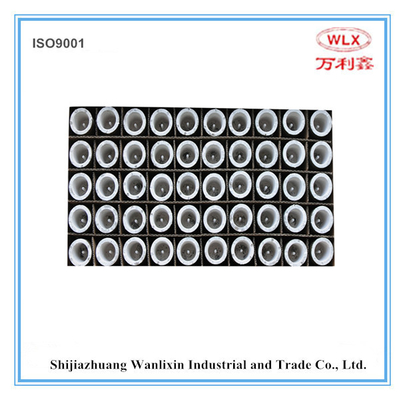

Standard Packing
|
100 pieces a carton
|
|
Carton Size (cm)
|
61x34x16
|
|
Gross Weight (kg)
|
15.00
|
The carbon cups are used matching with the carbon and sulphur analyzer to quickly analyze carbon content, silicon content and carbon equivalent in molten iron, which can save smelting time of molten iron, greatly reduce production cycle of white and grey cast iron and therefore increase production efficiency.
Principle of measurement:
Collection of temperature curves is conducted by microprocessor. Contents of carbon and silicon, and quality of molten iron can be calculated by crystallization process of molten iron.
Temperature range: 1250℃～1370℃
Measuring range:
CEL: 3.2%～4.8%±0.05%
C%: 2.8%～4.2%±0.05%
Si%: 0.9%～3.0%±0.1%
Graduation No. of supporting thermocouple wires: K type
Shape of carbon cup: round and square type
Measurement function: thermal analysis towards cast iron
Measuring time: 240 seconds at most
Indication in working process: the carbon cup is connected with three signal indicators on the panel of “Ready”, “Measurement” and “Finish” through potential free reed relay.
|
Standard Packing
|
100 pieces a carton
|
|
Carton Size (cm)
|
61x34x16
|
|
Gross Weight (kg)
|
15.00
|
