Product Details:
Payment & Shipping Terms:
|
| Model: | WLX-CE | Operating Temperature: | 0-40°C |
|---|---|---|---|
| Power Supply: | AC 100/220V 50/60Hz | Measurement Range: | (0-1372℃) |
| Resolution: | 0.1°C | Accuracy: | 0.1%F.S |
| Display: | 15 Inch LCD Monitor | Dimensions: | 410×340×150mm |
| Weight: | 8kg | Relative Humidity: | <90% |
| Measuring Content: | CEL, C%, Si%, Nodular, Tensile Strength, Hardness, Undercooling Etc. |

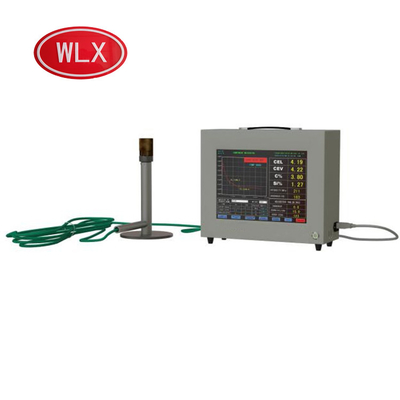

Thermal Analysis Quality Analyzer for melting iron
Nodular measuring for ductile molten iron
Technical Parameters:
| Specifications | Host | Industrial computer | Operating temperature | 0~40℃ | |
| Monitor | 15 inch LCD monitor | Relative humidity requirement | <90% | ||
| Power | AC 100/220V 50/60Hz | Power consumption | 40W | ||
| Dimension |
410×340×150mm
|
Weight | 8 kg | ||
| Functions | Measuring | CEL, C%, Si%, Nodular, Tensile strength, Hardness, Undercooling etc. | |||
| Adjustment Calculation | After the measurement is completed, the adjustment amount of the alloy is automatically calculated according to the preset material target value and the weight of the molten iron; the user can also temporarily modified the target value of the material and the weight of the molten iron to recalculate the adjusted addition amount of the alloy. | ||||
| Data storage | According to the timing measurements, data of results can be recorded more than 5000 times. | ||||
| Data output | By USB or RJ45 interface. | ||||
| View historical record | View historical measurement data, cooling curve etc. | ||||
| Measuring range and accuracy | Measuring item | Measuring range | Measurement accuracy | ||
| Resolution | 0.1℃(0-1372℃) | 0.1%F.S | |||
| Carbon equivalent | 2.50%～4.80% | ±0.08% | |||
|
Content of Carbon(C%)
|
2.30%～4.20% | ±0.05% | |||
|
Content of Silicon(Si%) |
0.60%～3.80% | ±0.10% | |||
| Nodular | 60%~99% | ±5% | |||
| Tensile strength | 150～400MPa | ±10MPa | |||
| Hardness | 100~300HB | ±10 HB | |||
Application
This thermal analyzer is mainly used in the foundry industry for rapid detection and analysis of hot metal components.

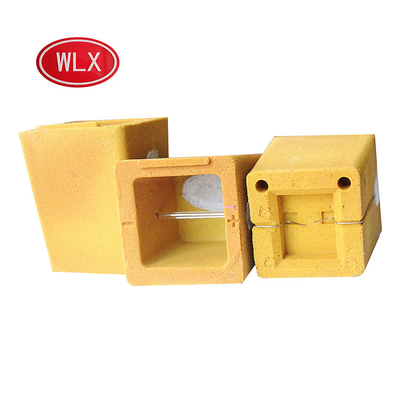

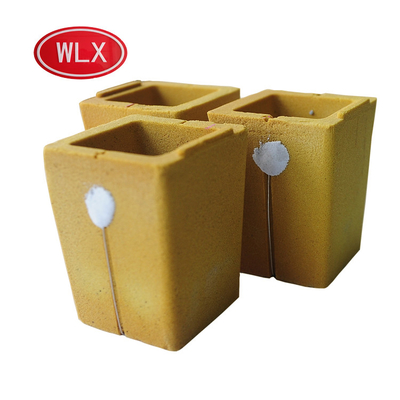

The thermal analyzer can be operated by connecting the power supply, samplecup and the support holder. Pour the molten iron to be measured into the sample cup and the thermal analyzer can automatically measure the carbon content C%, silicon content Si%, carbon equivalent CEL of the molten iron within 2 to 3 minutes.
Thermal analyzer has the characteristics of fast, simple and accurate, and should play a greater role in controlling the quality of casting production.
Characteristics
The thermal analyzer works using scientific evaluation methods and can
automatically determine the main metallurgical parameters of gray and white
cast iron.
The thermal analyzer is easy to operate and measurement data can be easily
read from the LED display even in dim light.
Thermal analyzer has the following characteristics:
1. Wide measuring range, suitable for molten iron before and after incubation
and spheroidized molten iron.
2. Strong anti-interference ability.
3. By using a suitable sample cup, the degree of super-cooling during the
condensation process of molten iron can be detected.
4. It has operation error indication function.
5. It has a serial interface and can be equipped with a printer.
Technical Parameters
1. Measuring range
Measuring range: 200℃～1370℃
Graduation number: K
Carbon content C%: 2.1～4.2
Silicon content Si%: 0.6～3.8
Carbon equivalent CEL: 2.5～5
2. Measurement accuracy
C: ±0.05%
Si: ±0.1%
CEL:±0.1%
3. Instrument display
The instrument display uses 4-digit LED display with a character height of
50mm; resolution: 1℃
4. Power supply: AC220V±10%; 50Hz
5. Environmental conditions
a. Working conditions: Temperature (℃): 0～50; Humidity (%RH): 5～80
b. Storage conditions: Temperature (℃): -20~60; Humidity (%RH): 5~90
